SL/DL322 System

SL/DL 322 American type is a big sliding system structure and functionality which provides better advantage for your projects. It is characterised by its simple line design containing three insulation chambers and a perimeter plush system in its sashes, additionally it has fixed and mobile reinforced overlap and glazing from 4 to 16 mm thick.
The above, makes it one of the highest quality standards products within the American type systems, along with its excellent cost/benefit ratio. Thanks to its thermo sealed structure and sashes supporting DVH thermal panels, it achieves greater tightness, preventing leaks and providing optimum thermal and acoustic performance.

OPENING OPTIONS

FIXED

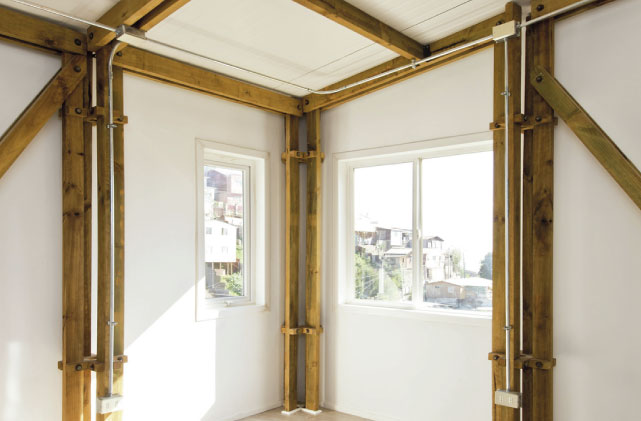

Suitable for spaces where only light is required without the need to generate ventilation, or as a complement to another window with any opening type. It offers exceptional thermal and acoustic insulation.

Guillotine

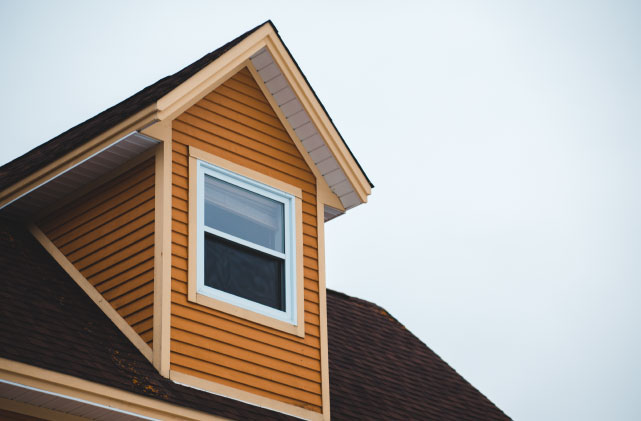

Guillotine window is basically composed for two vertically sliding frames. Therefore, sliding movement is provided by guides installed on the frame sides. This window type is perfect in very small spaces where other window types cannot be installed, along with generating perfect and stable currents according to your requirements.

Monorail

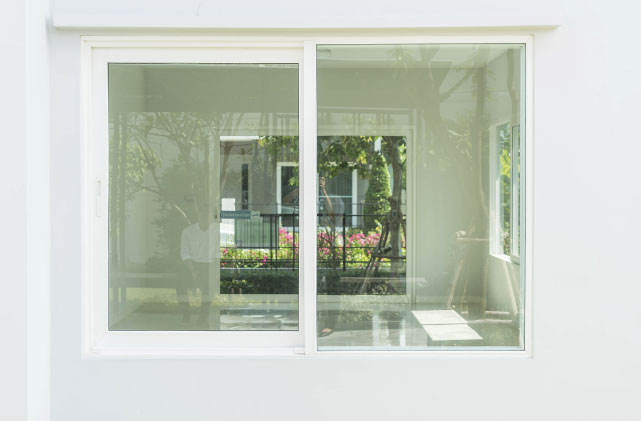

Single opening with a mobile sash and fixed panel, with insulation chambers and factory-installed plush improving thermal and acoustic insulation. Fixed and mobile overlap with inside reinforcement for greater stability and central latch locking on the mobile overlap.

Double-rail

Double-rails bring functionality into spaces, providing better opening freedom and stability due to interior steel reinforcements contained in their respective sashes.
Thanks to its third rail, it provides perfect solution for large spaces and turns it into a versatile system for your home.

SL/322 LINE PRODUCTS

SL/322

SL/322 LINE PRODUCTS

SL/322

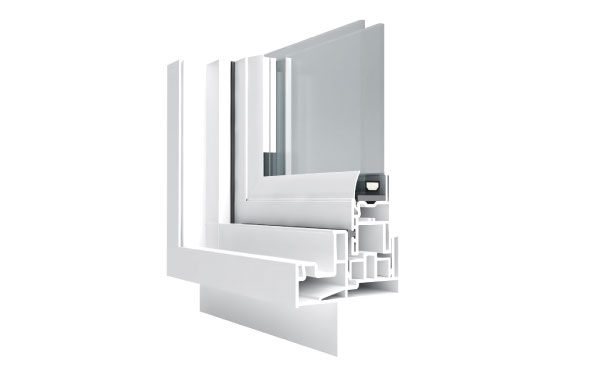

Sliding system composed of three formats; fixed, guillotine and monorail.
It has a constructive depth of 68.5mm including perimeter fin, insulation chambers and factory-installed plush to improve thermal and acoustic insulation.
SL/322 is a unique concept in its performance as is placed with higher standard within its comparative lines, insulation chambers, reinforced fixed/mobile overlap and perimeter plush in sash achieves increased comfort and benefit in your home.

Technical Data Sheet

DL/322

DL/322 LINE PRODUCTS

DL/322

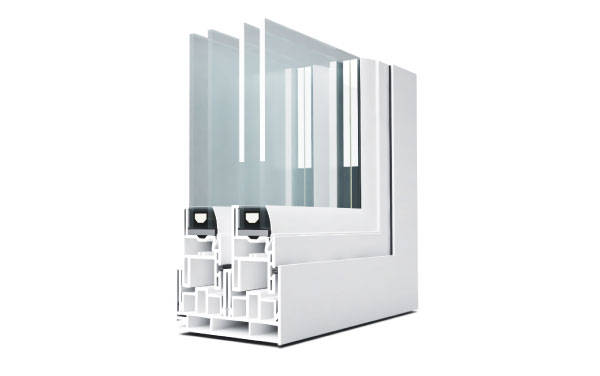

A double-rail sliding system with simple lines and elegant design, which providing perfect balance for your projects, as it brings functionality within spaces and giving greater freedom of opening.
Glazing from 4 to 16 mm. And a constructive depth of 70.1mm, apart from have an attachable rail for three or more rails solutions, achieving higher length in upper spans.
Central latch locking in mobile overlap with built-in reinforcement for greater security in your home.
DL/322 and its excellent cost/benefit ratio provide optimal solutions for your projects.
